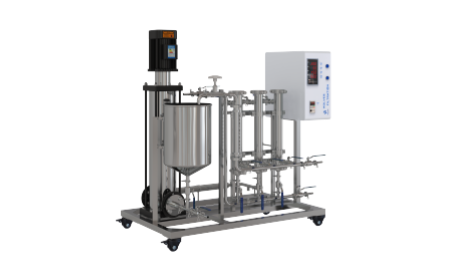

System Overview

●Laboratory type multi-SM-1812 (manual) mainly conduct separation and purification
of ultrafiltration UF, nano-filtration NF and reverse osmosis RO, which can be filtered,
discolored, desalted, purify and concentrated.

●According to the size of the molecular weight of the separated material, the selection of the membrane was carried out, and the material of 0.03μm to 100daltion could be separated.

●The equipment has the advantages of easy cleaning, maintenance and freedom of use.

Power Unit

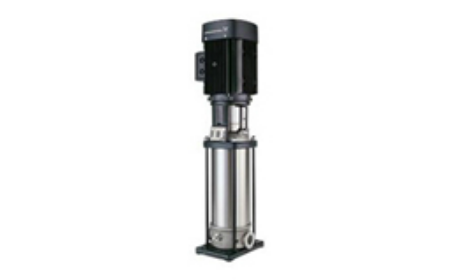

●Imported GRUNDFOS pump

●Variable frequency control, 20～50Hz adjustable, wide range use

●Flow rate：200～1100L/H

●Pressure：0～16.8Bar adjustable

Membrane Shell

●Three pieces in parallel

●Connection mode: High pressure clamp quick disconnection, withstand voltage20Mpa

●Mateiral：AISI 304

●Surface treatment: External surface brushed, inner surface polishing, food hygiene grade

Roll type membrane element

●GE imported original roll type membrane, 3 pieces.

●Membrane type: 1812 industrial separation membrane, the anti-contamination
membrane

●Applicable range：Microfiltration, ultrafiltration, nanofiltration and reverse osmosis.

●According to the user's process, we can choose the different brand membrane of 1812,
including the domestic roll membrane.

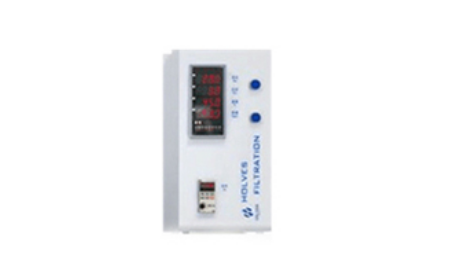

Control cabinet

●On-site instrument control cabinet

●Control mode: PID meter control, automatic adjustment

●Sensor: temperature electrode, pressure sensor, frequency conversion motor

●Flowmeter: On-site flow meter, manual adjustment

● Instrument: Four-in-one display + control instrument, variable frequency regulator

Material Standard

●Contact material: AISI 304, food grade hose

●Non-contact material:AISI 304, carbon steel + spray paint

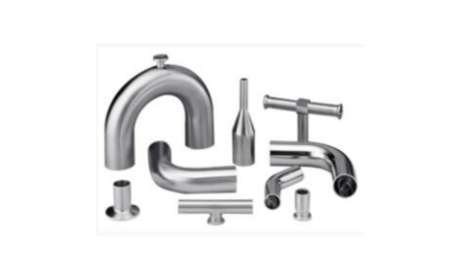

●Pipeline: sanitary seamless stainless steel tube

●Valve: Food grade health level direct ball valve, diaphragm valve

Process Capacity：3～20L/h

Power Unit： Imported GRUNDFOS pump, Frequency control, with high voltage protection settings

Working Pressure：0～16.8bar adjustable

Membrane Element：
  ● Membrane types：GE imported original roll type separation membrane---roll type UF, NF, RO membrane
  ● Membrane element loading capacity：3
  ● Single membrane area：0.26 m²
● Membrane element length：298.5mm
  ● Membrane shell：Material AISI 304, high pressure clamp quick disconnection, withstand voltage 20Mpa
      ● Membrane pore size: Intercept precision>95%(Standard substance testing) MWCO 200KD, 100KD
10KD, 5KD, 2K, 1K, 600D, 300D, 150D,100D, RO, customization

Valve, flow meter: Health ball valve, rotor flow meter

Pipeline：Material AISI 304, Sanitary polished inside and outside, with stainless steel pipe heat exchanger

Electrical control cabinet：
● On-line monitoring of temperature, pressure and liquid velocity
● Pump variable frequency controller，real-time display rotational speed frequency
● Temperature, pressure preset alarm

Material circulation tank： Material AISI 304, effective volumeV=16L

System upgrade：
  ●  Material, heat exchanger, flowmeter, valve, pump, etc. can be customized according to the user's environment.
  ●  Semi-automatic and automatic control system can be customized according to the user's environment.
  ●  The remote control and the mobile iPad control system can be customized according to the user's demand.

Size：870x650x1200mm

Weight：60kg
